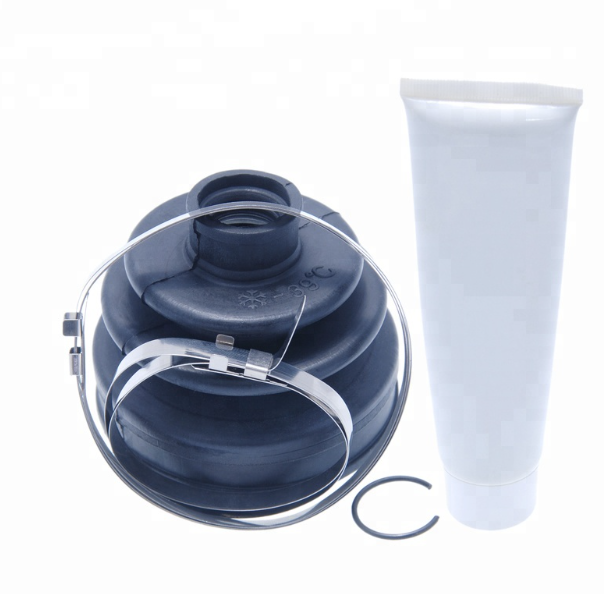

auto parts inner cv boot kit 39211-CA000 Rubber boot for Nissan
Our Advantage is
1. Full stock of all kinds of car types .
2. high quality
3. delivery fast.
4. warranty 1 year
Number :FL-017
OE Number:39211-CA000
Rubber Material:NR, EPDM, SBR, NBR, CR, etc.
Fitment Type:Direct Replacement
Rubber Hardness :50-90 Shore A
Extension Elongation: 400%
Compression Set:35%
Temperature Resistantly: -45°C
Oil Resistant:Volume Change 10%
Tensile Strength:7-25 MPA
Delivery: 3~7 days for stock item, 15~35 days for mass production
Surface Treatment:Parkerizing, Polishing, Zinc Plated, Spray painted
Rubber Material :Natural Rubber (75%) and (25%) synthetic Rubber
The cv.boot repalcement
When the cv.joint is damaged , you will hear a “clicking” or
“knocking” sound when making turns. This is a sign that the whole
CV axle needs to be replaced. If no noise is present and only the
CV boot is broken, you can replace just the CV boot.
Disassembly
1. Pull off the big Clip
2. Pull off the small clip.
3. Turn the boot out of the drive axle side
4. Joint has to be pulled off the shaft by tapping with hammer
Assembly
1. Place Circlip into the groove of the shaft
2. Fill about half the grease supplied into the joint
3. Move joint carefully with hammer until circlip expands to fit
its funciton position.
4.Fill remaining grease into the cv.joint and boot .
5.Put the cv.joint boot on the correct position.
6.Ventilate the cv.boot by the tool.
7.Set the big clip by hand as tight as possible and lock it with
pillers.
8.Set the small clip by hand as tight as possible and lock it with
pillers.
9.Check close fit of the clip. And the boot must be in full contact
with the joint and the shaft.
Model for car :NISSAN
